Bucket Elevator Manufacturers

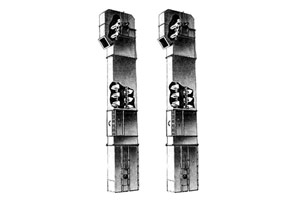

Cement Plant Bucket Elevator

These are usually centrifugal chain type bucket elevators with buckets mounted on a single strand of chain. The buckets are normally a special combination of AA and continuous type bucket.

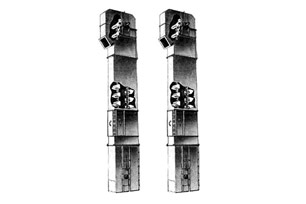

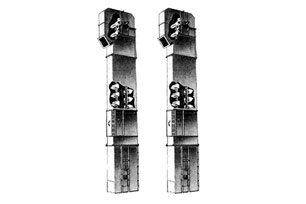

Super Capacity Bucket Elevator

These are continuous chain type bucket elevators where buckets are mounted between Two strands of chain SC bucket elevators are especially suitable for handling larger capacities of friable, heavy or abrasive material in fines or lumps.

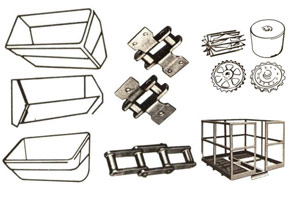

Parts And Accessories

BUCKET ELEVATORS are ideal for elevating a variety of bulk materials economically. Efficiently and reliably. The two main types of Bucket Elevators are Centrifugal type and Continuous type

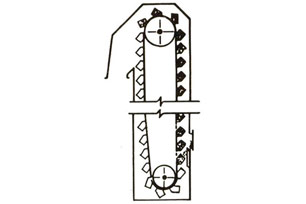

Centrifugal Type -Ce Bucket Elevators

Extremely suitable for handling fine, free flowing materials. Lower feed point, simpler loading and lesser no. of buckets characterize the centrifugal type when compared to continuous. Buckets are on chain or belt and travel at high speeds to effect discharge by centrifugal forces as they pass around the head Pulley. The buckets are mounted at intervals on a chain or belt.

Centrifugal Belt Type-CEB

Buckets are mounted on chains which are std combination chains or steel side bar chains. Heat treated chains are also available Buckets normally used are style AA malleable iron buckets. Drive is through shaft mounted gear reducer with built-in back stop or through geared motor with chain drive.

Centrifugal Chain Type-CEC

Buckets are mounted on chains which are std combination chains or steel side bar chains. Heat treated chains are also available Buckets normally used are style AA malleable iron buckets. Drive is through shaft mounted gear reducer with built-in back stop or through geared motor with chain drive.

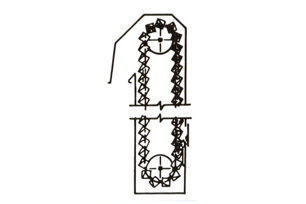

Continuous Type-Co Bucket Elevators

Continuous bucket elevators have buckets mounted continuously on chain or belt. These elevators are suitable for sluggish aerated and friable material or material with larger % of lumps. Loading of the buckets is through loading leg and discharged over the face of the preceding bucket while passing around the head wheel.

Continiuous Belt Type-COB

The buckets are mounted continuously on the face of the elevator belts which are normally friction surface belts Continuous type steel buckets are used leaving minimum clearance between the buckets Drive is through shaft mounted gear reducer with built in back stop or through geared motor with chain drive.

Continuous Chain Type-COC

Buckets are mounted continuously on chains which are std. combination chains or steel side bar chains. Buckets are continuous type, leaving minimum clearance between the buckets. Drive is through shaft mounted gear reducer with built in back stop or through geared motor with chain drive.

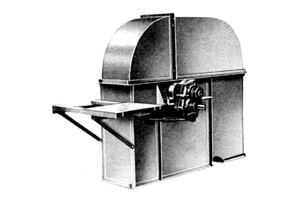

Head Sectioin

Head section is of heavy gauge construction with easy access for maintenance. The section is dust and weather tight. The head shaft is provided with antifriction bearing discharge spout is provided with angular flange.

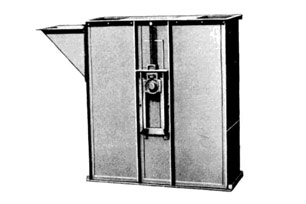

Boot Section

Boot section is fabricated out of heavy gauge sheet metal The section is dust and water tight and is provided with handy door for easy inspection of shaft and pulley Clean out slides are also incorporated

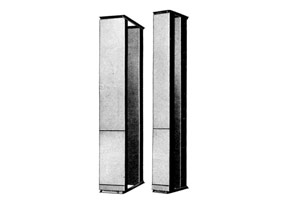

Legging Sectioin

Legging section is either single or double legged depending on the requirements. The legging is in sections with suitable connecting flanges for perfect fit and alignment of sections Doors are provided giving easy access for maintenance and cleaning.
