Principle

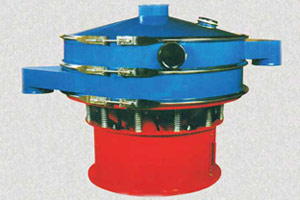

Vibratory Motion Is The Most Effective Method For Screening. It Causes 100% Rotary Motion And Causes Dispersion Stirring And Stratification Of Material To Be Sifted. Feed Material Constantly Flows In Horizontal Motion Along A Loop Pattern On Vibro Screen Surface. "PREMIUM" Vibro Screen Provides Optimum Screening And Assures Maximum Federates And Efficiency.
Features
Vibro Screen Are Driven By A Special Type Of Vertically Mounted Motor Having Eccentric Weight At The Upper And Lower End Of The Shaft. Rotation Of Out Of Balance Top Weight Causes Vibration In Horizontal Plane Where As The Rotation Of Lower Weight Causes Tilt An Vibrations In Vertical Plane.
Advantage
Applications
Principles Of Multiplane Motion:
The Heart Of The Vibro Screen Is Its Special Heavy Duty, Robust Motor, Having Out Of Balance Weight At Top & Bottom. By Changing Their Lead Angle, Various Spiral Screening Patterns Are Obtained To Suit Different Applications.
Technical Specifications
| Model | Screen Dia M.M. | Screen 2 Area Cm | Motor H.P. | Capacity Mt/Hr. | Height Of Lowest Discharge (In Mm) | Total Height Including Dust Cover (In Mm) |
| PVS – 48 | 1206 | 11680 | 1.5 | 3 | 565 | 1075 |
| PVS – 60 | 1525 | 18265 | 1.5 | 4 | 565 | 1075 |
| PVS – 72 | 1803 | 26290 | 2/3 | 6 | 568 | 1150 |
| PVS – 84 | 2133 | 35628 | 5.0 | 8 | 900 | 1600 |
| PVS – 96 | 2400 | 49000 | 5.0 | 10 | 900 | 1600 |
