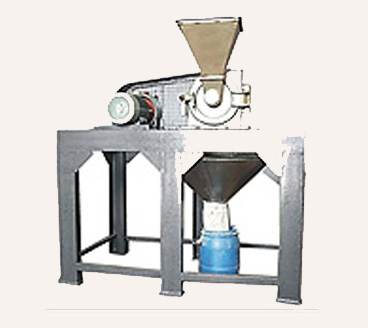

Junior Series Premium Universal Mills :
These MILLS have small diameter ranging from 160mm, to300mm.

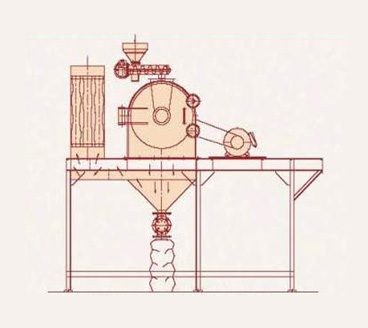

These MILLS have either FEED TRY or FEED HOPPER and are mounted on CABINET or stand. A provision for AIR BALOON is provided for AIR to ESCAPE. LAB MODELS are usually CABINET MOUNTED and PRODUCTION MODELS are mounted on RECTANGULAR STAND. These models are mounted on RECTANGULAR STAND. These models are mounted on RECTANGULAR STAND. These models are BOTTOM OPEN TYPE (B.O.T) and Blast Rotor and CLASSIFIER STATOR can be given in S.S. Construction. Technical Specification of these models is as under
Technical Specifications :
| MODEL | Rotor Dia mm | H.P | Capacity KG/HR. | APP WT.KG. | Space Required L xW x H |
| PUM JR-160 | 160 | 2.0 | 5-50 | 70 | 500 x 525 x 600 |
| PUM JR-200 | 210 | 3.0 | 25-100 | 125 | 550 x 575 x 700 |
| PUM JR-250 | 260 | 5.0 | 50-200 | 170 | 575 x 625 x 800 |
| PUM JR-300 | 310 | 7.5 | 100-400 | 250 | 675 x 700 x 1000 |

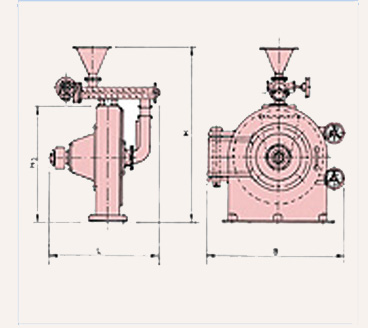

Senior Series Premium Universal Mills :
These mills are in BIGGER DIAMETER ranging from 500 mm to 1000 mm, H.P of MAIN MOTOR will depend upon model, capacity, Fineness of END PRODUCT and type of material.

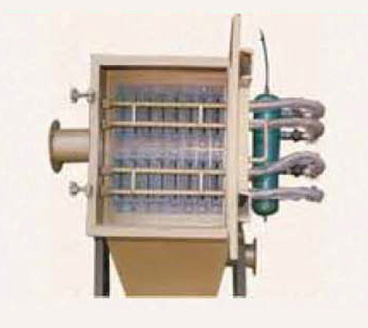

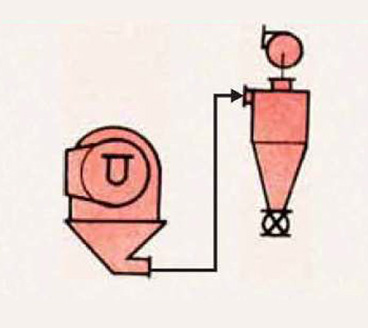

These MILLS are provided with SCREW FEEDER for uniform and regulated flow and are suitable either for MECHANICAL DISCHARGE / CONVEYEYING or PNEUMATIC COLLECTOR and AIR LOCK is provided For DUSTY and pungent material reverse Pulse Air Jet Dust Collector and aspiration System is recommended Technical Specification are as under
| MODEL | Rotor Dia mm | H.P | Capacity KG/HR. | APP WT. KG. | Space Required | ||
| Main M/c. | Screw Feeder | L xW x H | H1 | ||||
| PUM SR-500 | 480 | 15 | 1 | 200-600 | 600 | 1410x1250x1610 | 1010 |
| PUM SR-625 | 625 | 25 | 1 | 400-800 | 1050 | 1500x1400x1775 | 1175 |
| PUM SR-750 | 750 | 50 | 1 | 600-1000 | 1400 | 1600x1500x1900 | 1285 |
| PUM SR-900 | 900 | 75 | 1 | 800-1500 | 1650 | 1800x1700x2100 | 1510 |
| PUM SR-1000 | 1000 | 100 | 1 | 1000-2500 | 1850 | 1800x1800x2250 | 1650 |
Specification and design are subject to change without notice for any additional improvement

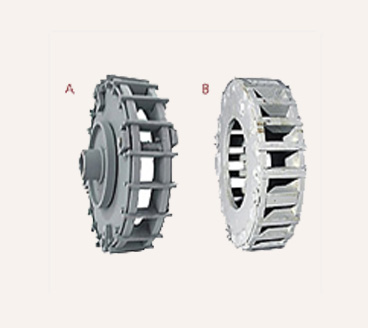

Blast Rotors :
A. Bar Type Blast Rotor :
Premium Universal Mills Are Provided With Bar Type Blast Rotors. The Bars Are Either Straight Bars Or Inclined Bars. The Speed Of Blast Rotor, Type Of Bars Will Decide Fineness Of End Products. As Shown In The Picture Bars Are Fitted In Rotor End Discs And Are Firmly Locked.
B. Plate Type Blast Rotor :
The Blast Rotor Is Same But The Grinding Tools Are In The Shape Of Plates As Shown In The Picture Beside The Speed And Classifier Screen Size Of Hole The Distance Between Outer Edge Of Blast Rotor And Classifier Screen Drum Will Beside The Fineness Of End Product.

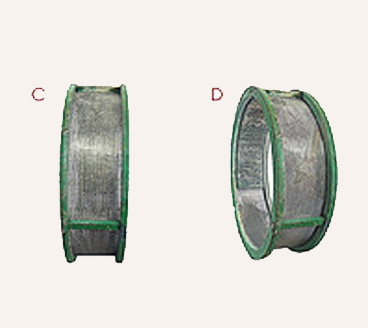

Classifier Stators :

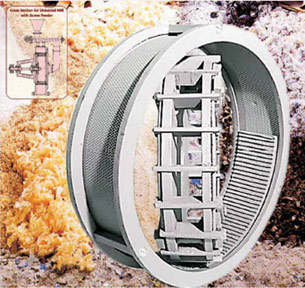

C. Full Screen Classifier Stator:
This Is Full Screen Drum. Screen Is Fixed Between Two Rings And Bars Are Screwed On End Rings To Reinforce And Support The Screen. The Size Of Screen Is Selected As Per Requirement Of Fineness.
D. Screen Cum Track Stator:
This Has Screen Of Required Hole Size And Grinding Tracks (Seratted Segments). The Portion Of Such Tracks Is Decided Upon The Fineness Of End Product And Type Of Product.
Technical Information:

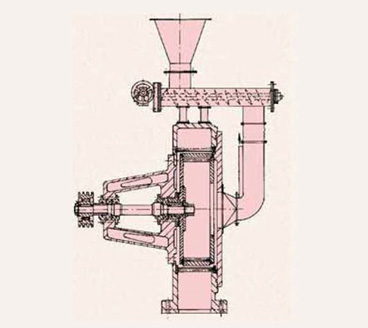

This Is a Very Common And Standard Mill For Grinding Many Materials. The Grinding is effected in a highly turbulent air, Starting From inside edge and ending on the out side edge of the grinding bars. Because of air intake and circulation during grinding the Material does not get Heated. The Turbulent air carries the fines through the Sieve Opening. The mill Has Stator and Rotor. The Rotor is Perfectly balanced. The Stator is in drum Form and has both Liners which grind the Material and Sieve Which Permit The Pulverized Particles to escape out of Grinding Chambers. The Material Fed in The Center And Discharged is from Periphery. By Varying the r.p.m. of rotor and feed rate fineness and out put are controlled.
